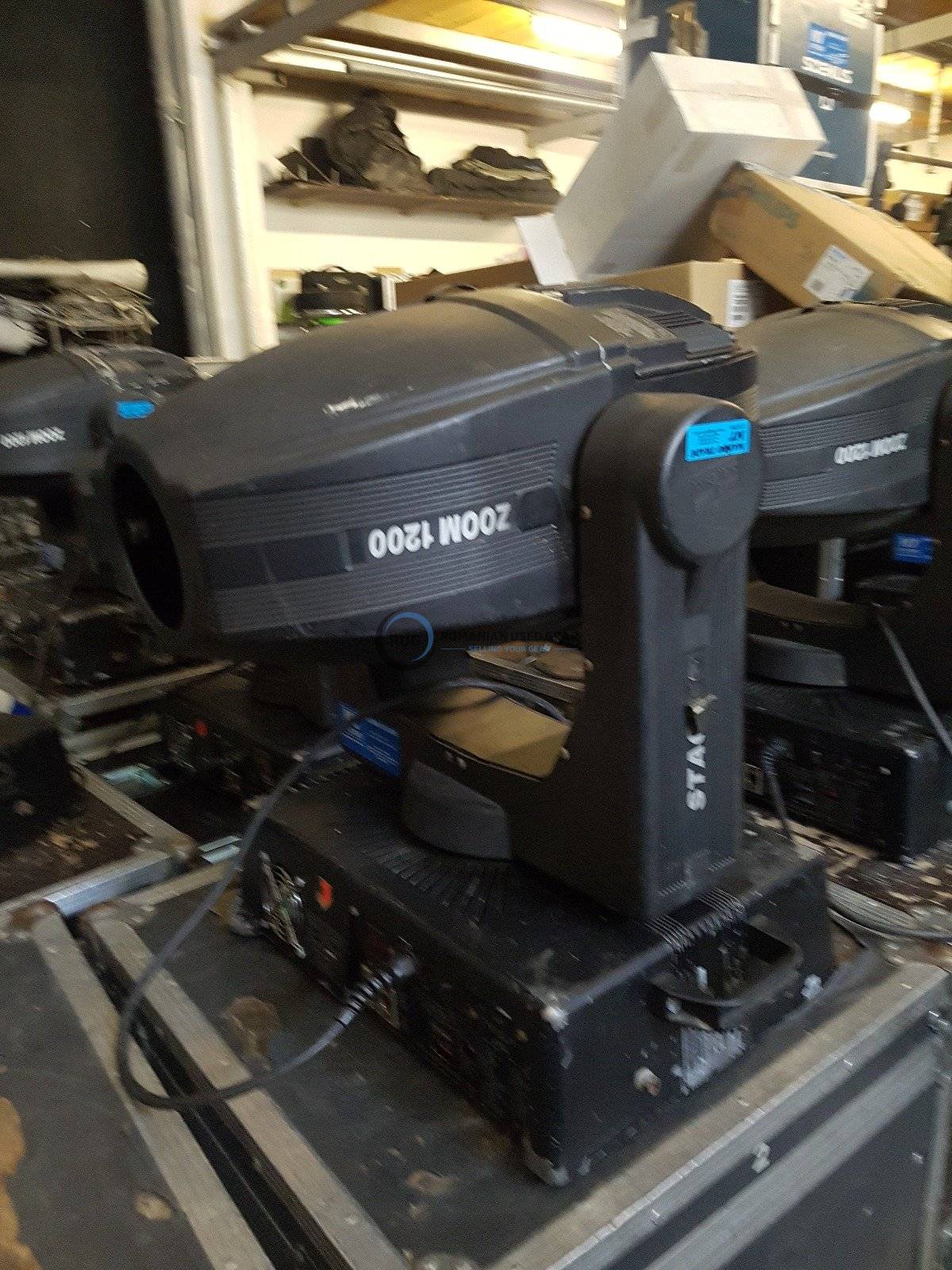

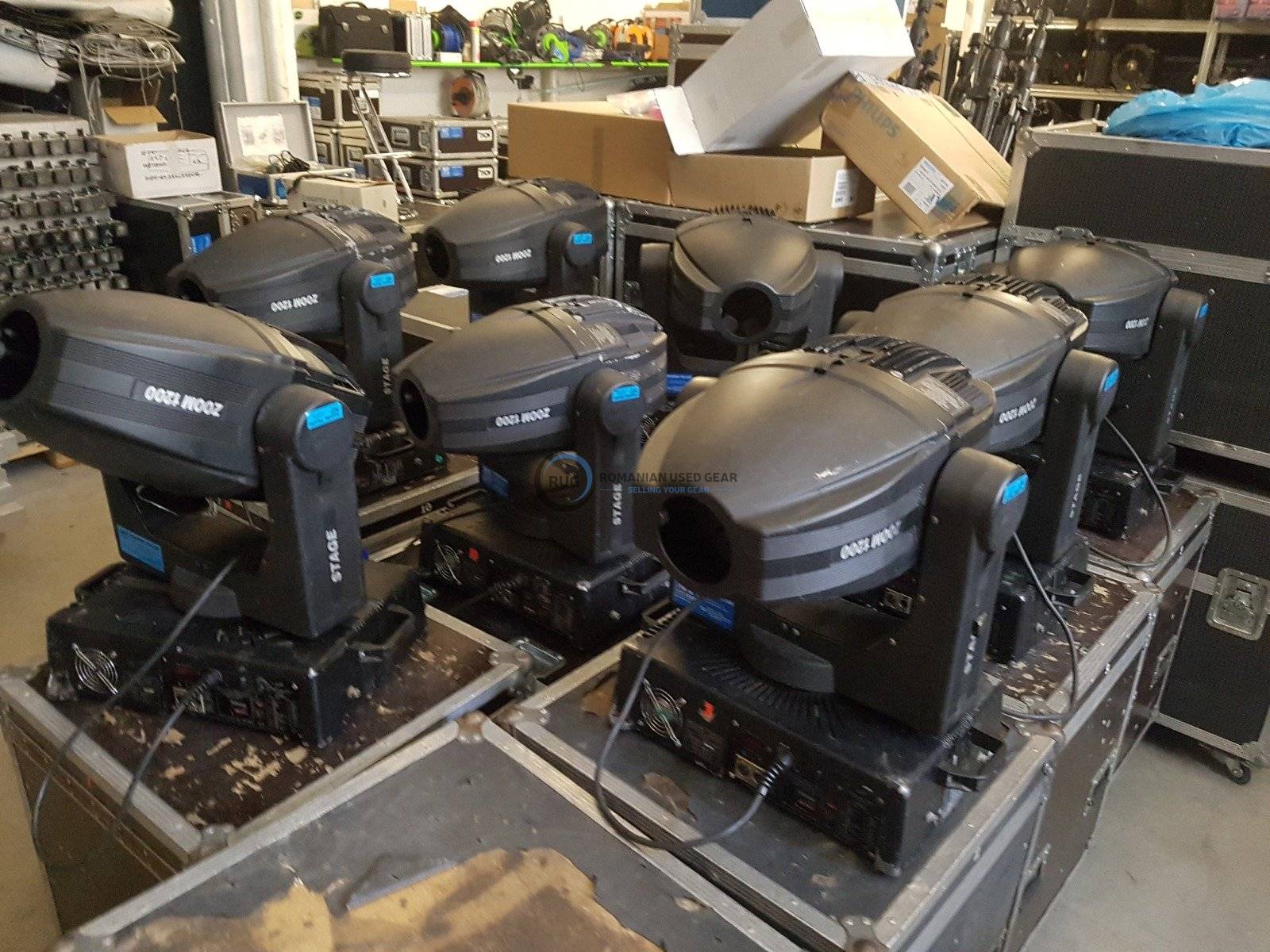

Stage Zoom 1200

Aparatele sunt in stare buna de functionnare cu mentenanta anuala.

Aparatele includ si flight-cases

• Lamp
  Metal iodide lamp powered by a special unit incorporated in the fixture.
  Type HMI 1200W/S
  – Fitting SFc 10-4
  – Color temperature 6.000 K
  – Luminous flux 110.000 lm
  – Average life 750 hrs
• Motors
  N° 22 stepped motors with microstepping operation and full microprocessor control.
• Optical system
  Twin-lens condenser.
  High luminous efficiency spherical reflector.
  Zoom lens, focal 114/243 (16° ÷ 24°).
• Channels
  N° 16 + 3 control channels.
• Inputs
  DMX 512 • RS232/423 (PMX)
• Moving body
  Movement produced by two microprocessor-controlled microstepping motors.
  Automatic PAN and TILT repositioning in the event of accidental movement notordered from the desk.
  Range:
  – PAN = 450° – TILT = 252°
  Max. speed:
  – PAN = 4.0 sec (360°)
  – TILT = 3.2 sec (252°)
  Resolution:
  – PAN = ± 1.76°
  – PAN FINE = ± 0.007°
  – TILT = ± 0.98°
  – TILT FINE = ± 0.004°

One of the Clay Paky Stage Zoom 1200 special features is the zoom lens, with zoom and electronic focusing controlled from the desk, with a range from 16 to 24 degrees to offer a wide choice of projection angles. Stage Zoom 1200 uses a three filter CMY color mixing system, providing an almost limitless palette, backed up by two color-temperature correction filters (3200 and 6000 K). The special colors include concentric twin-colored beams, four-colored beams, ultraviolet light, a light blue filter and the rainbow effect.

The highly innovative, effective variable frost effect offers complete gradual variation, allowing a spectacular transition through the various diffusion levels, down to a very wide diffusion angle.
