Alpha Wash 1200W
#469
Marca: Clay Paky
Vechime: Peste 10 ani
Garantie: 90 zile
Stare produs: Bun
Pret cu TVA: 2849.78 Lei
In stoc
|
|
|
|
|
|
Comanda instant - Alpha Wash 1200W
|

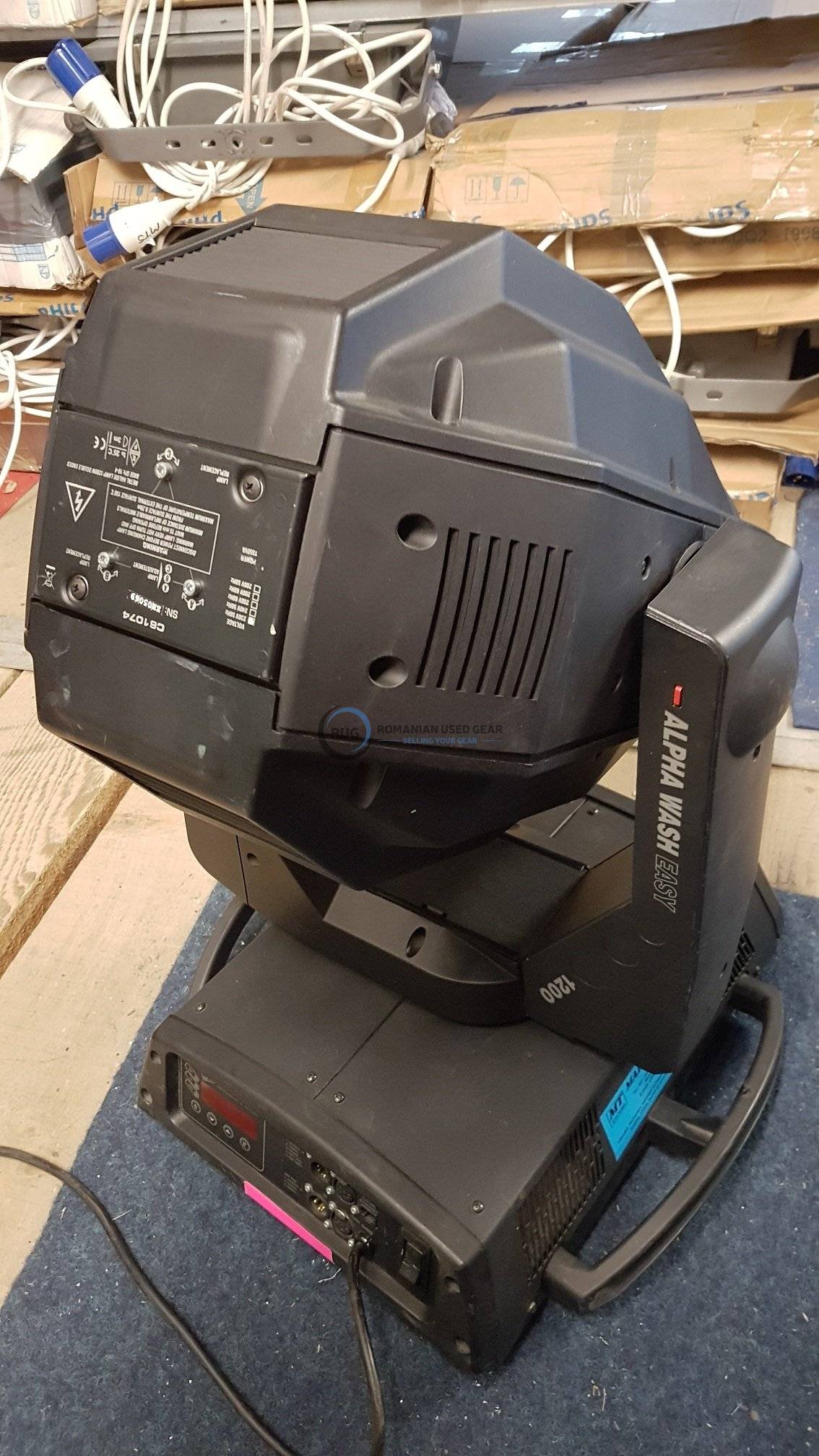

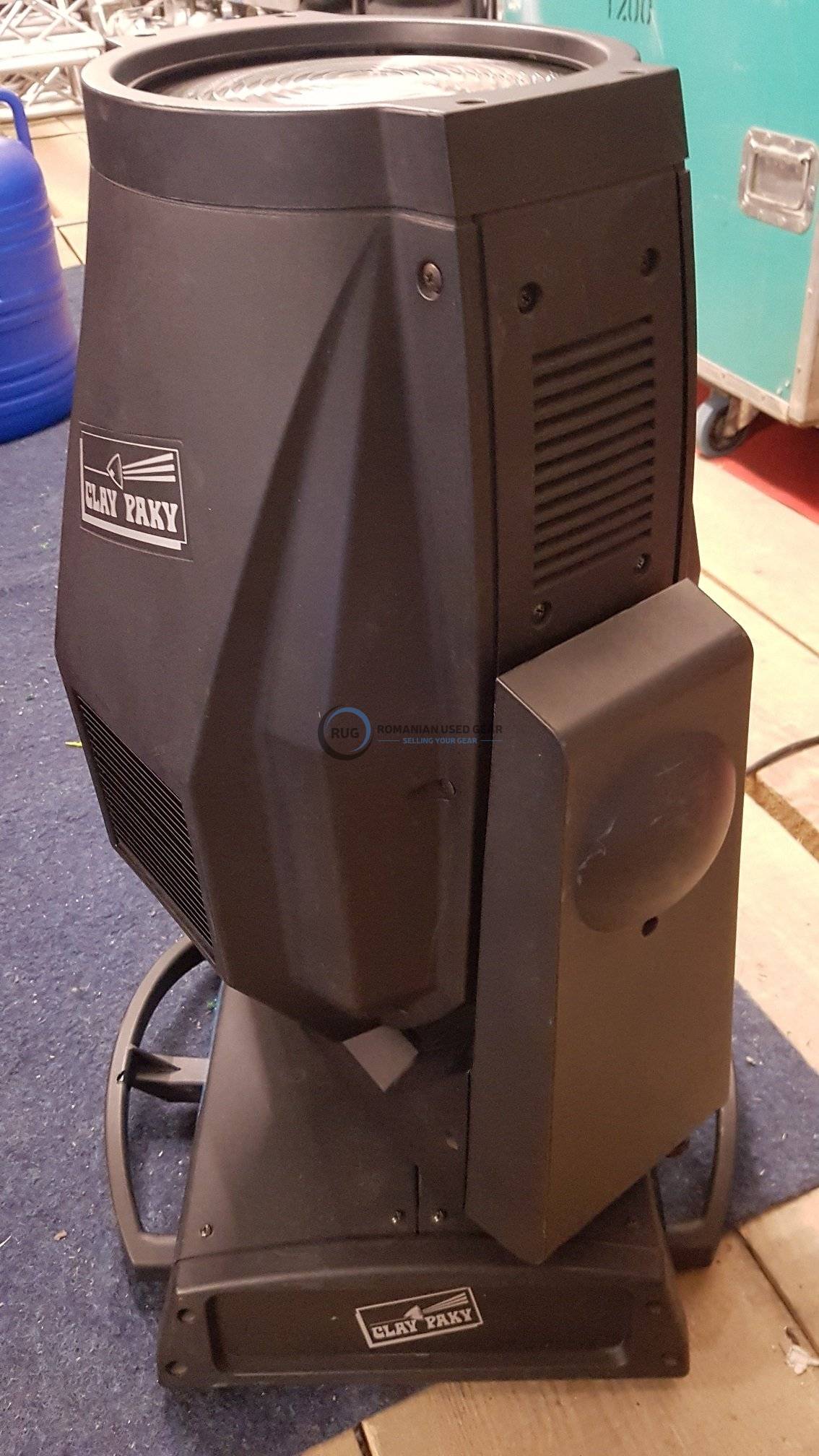

Alpha Wash 1200W
|
|
|
This is the top washlight in its category: a 1200 W light with all the technological, structural and reliability pluses typical of the Alpha line. Its wide 11°-55° linear zoom, the complete CMY colour system, the purity of the colours obtained with select pure dichroic filters, the adjustable ovalizer filter, and its surprising brightness even at maximum beam angle mean it can be used for short, medium and long throw applications in professional and architectural lighting.
- 1200 W discharge lamp
- Optical unit with extremely high luminous efficiency
- Exceptional brightness even at maximum beam angle
- 11°- 55° electronic zoom + 3-step beam angle system
- CMY colour system + colour wheel + linear CTO
- Adjustable indexable ovalizer filter with 70° maximum beam angle
- 2 frost filters
- Spectacular new design 0-100% dimmer + stop/strobe on a dedicated channel
- Silent operation ("Silent Version” system supplied as standard)
- High performance electronics
- Modular construction for easy maintenance
POWER SUPPLIES
200 - 240V 50/60Hz
100 - 120V 50/60Hz
The power supply can be changed over with the built-in selector.
INPUT POWER
1550VA at 230V 50Hz (PFC Electronic ballast).
LAMP SOURCE
1200W discharge lamp
- Type: Osram Sharks HTI 1200W/D7/75
- Cap: SFc 10-4
- Color temperature: 7,500 K
- Luminous flux: 110,000 lm
- Average life: 750 h
- Hot Restrike
OPTICS
Elliptic reflector with high luminous efficiency
Electronic zoom 11°-55°
Possibility of obtaining 3 angular apertures (11°; 19°; 25°) without cutting in the Zoom.
Fresnel Lens: diameter 200 mm, focal length 140 mm.
COLOR SYSTEM
CMY Color Mixing.
4-color wheel (Ø 57mm) with interchangeable color filters: Satured Red, Congo Blue, CTB (7.500K), Wood + open
Linear CTO
EFFECTS SECTION
2 frost filters (light and heavy frost).
Indexable ovalizer with 70° max aperture.
0-100% dimmer on a dedicated channel.
Stop / strobe effect.
CONTROL AND PROGRAMMING
Max 20 DMX 512 control channels
DMX protocol signal: USITT DMX 512
Display: Graphic LCD Display
Pan/Tilt Resolution: 16 bit
Movement control: vectorial
DMX signal connection: 3 and 5 pole XLR input and output
Software upload through DMX input
BODY
Aluminium structure with die-cast plastic cover.
Two side handles for transportation.
PAN and TILT lock for transport and maintenance.
The body of the projector can be coloured, choosing from the range of 14 colours available (minimum order: 6 pieces)
MOVING BODY
Angle:
- PAN = 450°, TILT = 252°
Max Speeds:
- PAN = 4.0 sec. (360°)
- TILT = 3.2 sec. (252°)
Resolution:
- PAN = 1.76°, PAN FINE = 0.007°
- TILT = 0.98°, TILT FINE = 0.004°
Automatic repositioning of PAN and TILT after accidental movement not controlled by control unit.
ELECTRONICS
Long life self-charging buffer battery.
Pre-set macros.
Function reset from the lighting desk.
"ENERGY SAVING" function: with the stop or total dimmer effect on, or with all the CMY filters full (black), consumption cut by 50%.
115/230 V switchable power supply.
ON/OFF lamp control from the lighting desk.
"HELP", "MEMO", "AUTOTEST" functions
Possibility to upgrade the software through the DMX 512 input.
ETHERNET connection.
Electronic control on each parameter.
DMX level monitoring on each channel.
Feedback information for each sensor and encoder.
Electronic repositioning of the effects
SAFETY DEVICES
Bipolar circuit breaker with thermal protection.
Automatic break in power supply in case of overheating.
Forced ventilation with axial fans.
WORKING POSITION
Functions in any position.
Hanging system: with fast-lock omega clamps (1/4 turn) on the base
CE MARKING
In conformity with the European Directives:
• 2006/95/EC - Safety of electrical equipment supplied at low voltage (LVD)
• 2004/108/EC - Electromagnetic Compatibility (EMC)
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
ETL
This product is available, on demand, with ETLus Listed Mark, that complies with the UL 1573 standard.
 |
|
|
|
|
